Quick
Stop
Quick

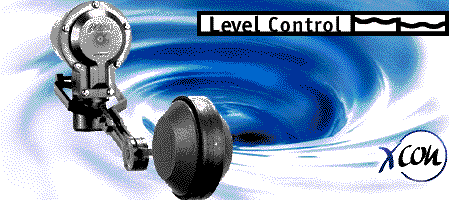

Stop is a fully-automatic water tap on mechanical basis, electrical
installations are not required. Quick Stop is mounted into the
water tank and connected directly to the central water supply.
A float, which is a component of Quick Stop, controls the level
in the water tank and closes and opens water supply dependent
on the water level. The patented mechanism responds instantaneously
to reaching the upper and lower water level. Virtually without
any delay, filling occurs with the entire available pressure of
the central water supply within shortest time possible at lowest
noise possible without annoying dripping. |
| Dimensions |
|
|
Connection |
External
Ø (mm |
Dimensions
(mm) |
|
|
3/8" |
9,5 |
240
x 80 x 50 |
|
|
1/2" |
9,5 |
240
x 80 x 50 |
|
|
3/4" |
25 |
350
x 150 x 70 |
|
|
1" |
25 |
350
x 150 x 70 |
|
|
1
1/4" |
25 |
350
x 150 x 70 |
|
|
1
1/2" |
25 |
350
x 150 x 70 |
|
|
| Technical
Data |
|
Housing
material |
Polycarbonate
|
Operating
temperature |
0
- 50°C
|
Storage
temperature |
-20
- +80°C
|
Operation |
permanent
|
Working
pressure |
0.2
/ 0.3 - 6 bar
|
Max.
pressure |
10 bar
|
|
|
|
|
