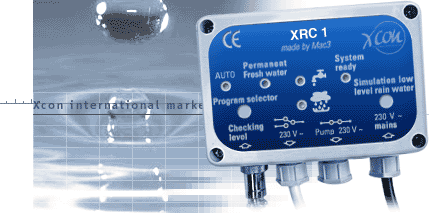

- Delivered
ready-to-wire, complete with lead and combined socket /
plug
- Monitoring
of water level inside cistern
- Automatic
switching to fresh water when water remains under minimum
low level
- Version
XRC 2 comes with relative level indication
- Level
control by sensor or float switch
- Direct
control of motorized zone valves or solenoid valves
- Application
independent of fresh water flow (into the water system or
into cistern)
- Permanent
fresh water operation possible (e.g. for maintenance works
inside cistern)
-
Simulation of remaining below minimum low level
- Direct
unswitched 230 V outlet for pump control (e.g. Xcon Fluomac)
- Direct
unswitched 230 V outlet for pump control on combined socket/plug
- Regular
activation of switched outlet to avoid sticking on solenoid
valves
- Box
with protection degree IP 55 suitable for use in wet rooms
(dimensions approx. L 120 x W 88 x H 60 mm, fixing by screws
on back plate)
To
monitor the water level inside the cistern we recommend
our special float switch Champ 2 G-F with 2-wire PVC cable
and microswitch with gold contacts. Champ 2 G-F makes contact
when reaching the lower level.
|
Technichal
Data |
|
|
|
Mains
cord with Schuko plug and unswitched outlet
|
0,75
m long, 3G1 |
|
Max.
ambient temperature
|
50°C
|
|
Dimensions
of box |
127
x 87 x 61 mm
IP 54 |
|
Supply
voltage |
230
V ac, 2 VA |
| |
|
|
|
Voltage
and max. contact capacity |
|
|
|
Sensor/float
switch 5 V / 10 mA |
5
V / 10 mA |
|
Motor
valve / solenoid valve |
250
V / 1 A (fuse 5 A) |
|
Pump |
250
V / 5 A |
|
Mains |
250
V / 6 A |
|
